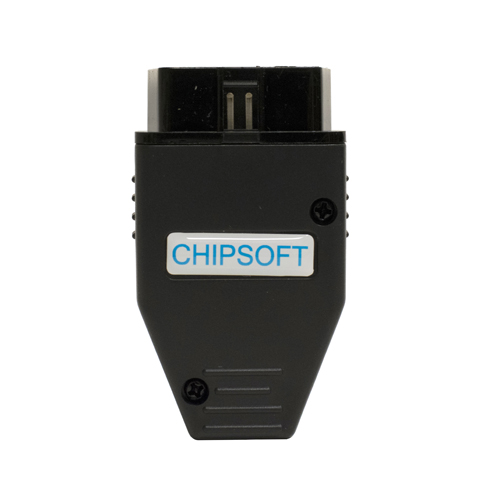

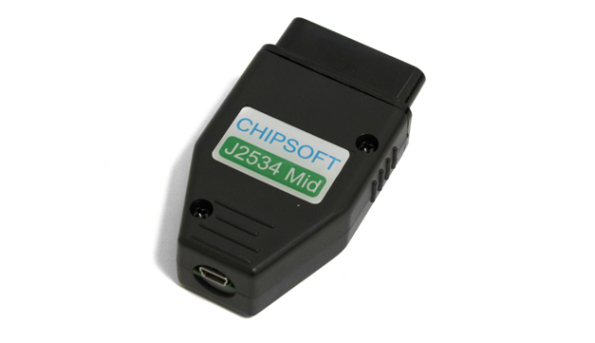

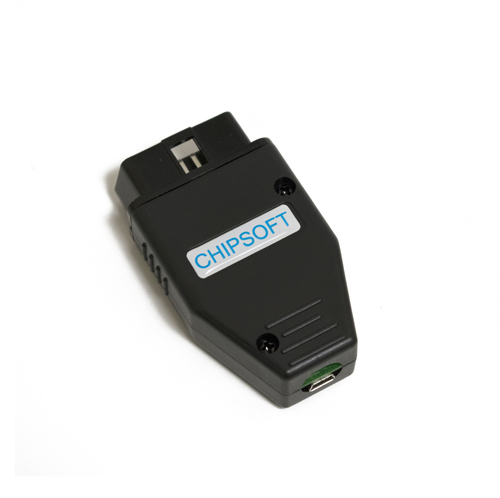

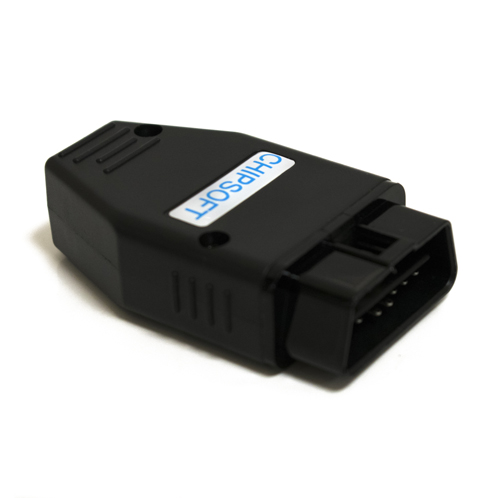

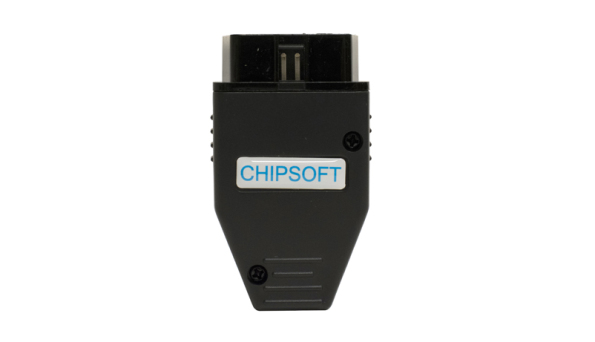

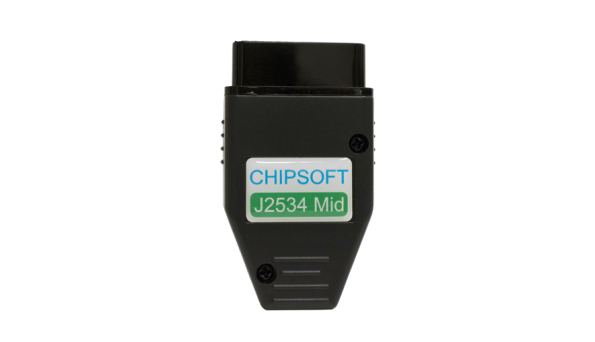

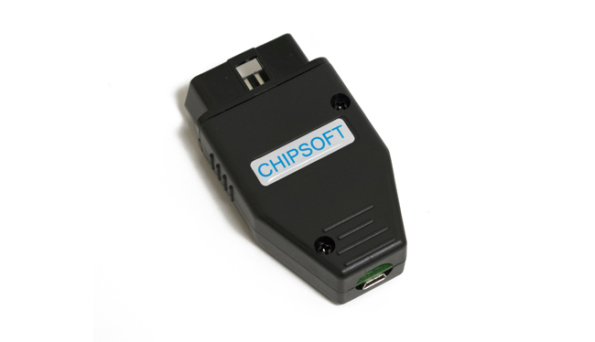

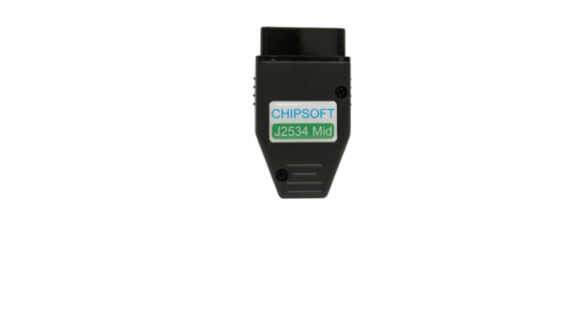

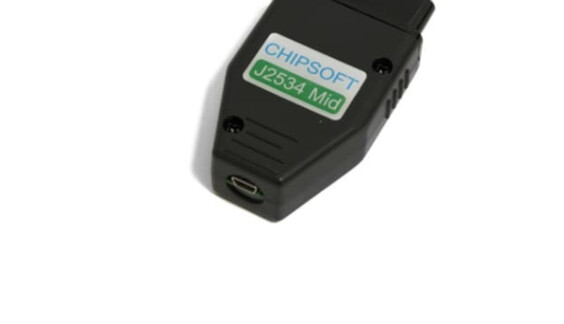

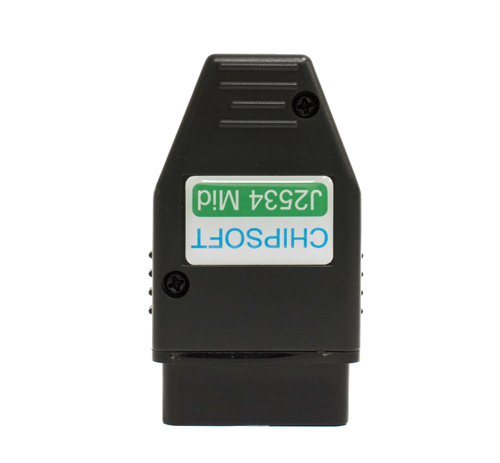

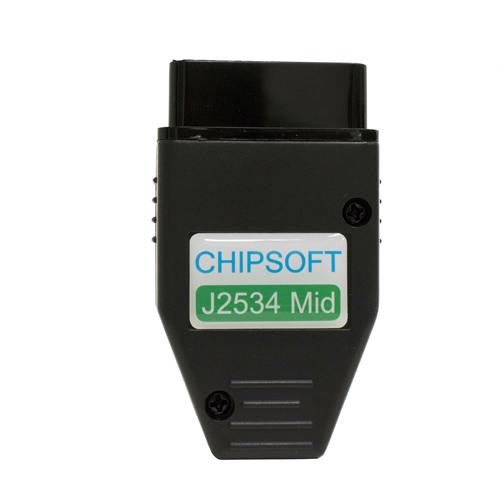

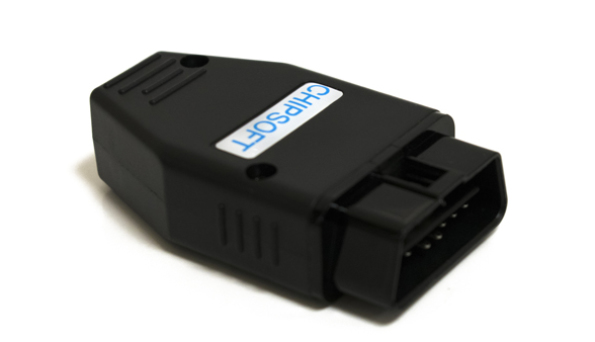

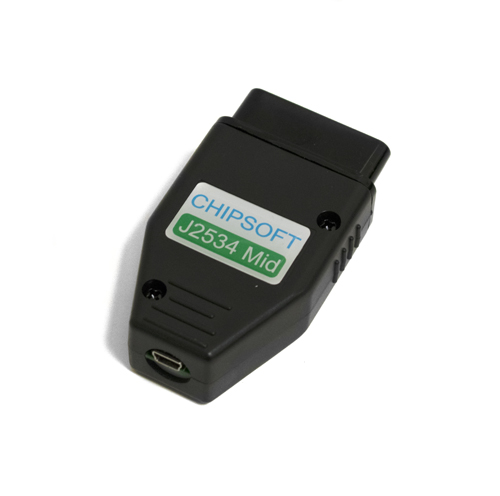

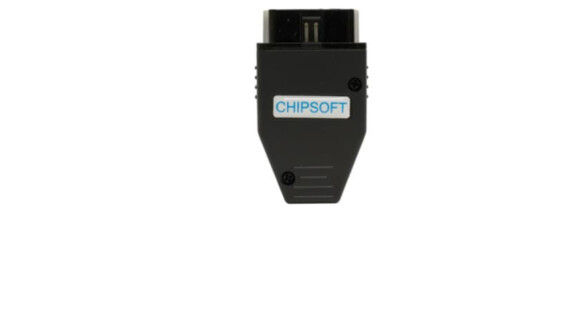

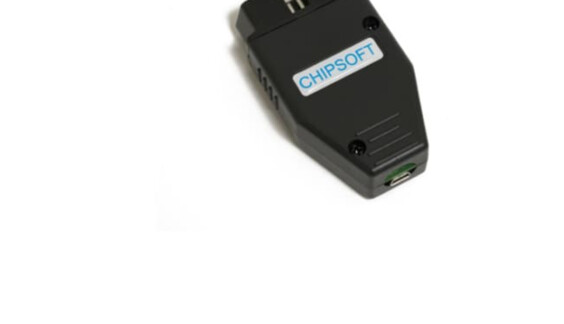

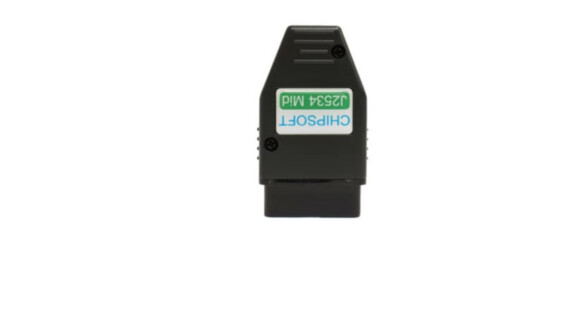

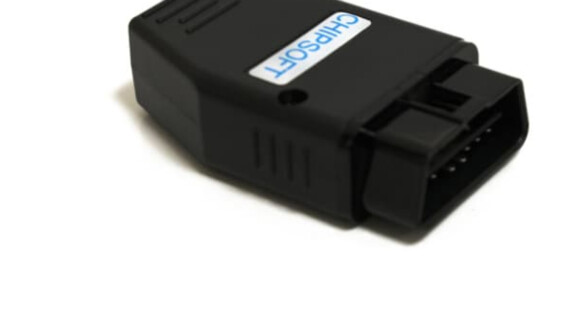

Chipsoft J2534 Mid & K-line

Item no.: 13C3000
Manufacturer
Contents of delivery
  • Chipsoft J2534 Mid & K-line
Downloads
Basic equipment
Chipsoft J2534 Mid & K-line — 0 $
 + Add
Status: Off-sale

CHIPSOFT J2534 Mid & K-line adapter is one of the most affordable adapters in its class. Support of various programs working via J2534 standard makes it an irreplaceable tool for diagnostics and chip tuning, and its price allows you to start your own business with minimum financial expenses. Various working modes of the adapter (J2534, K-Line adapter, CANHacker) substantially widen its functionality.

Technical specifications:

  • modern powerful 32-bit ARM processor 72 MHz;
  • work under the control of the real-time operational system (RTOS);
  • support of the bus USB 2.0 Full-speed;
  • update of the adapter firmware via USB;
  • support of J2534 standard, partial support of J2534-2 standard;
  • protection from polarity reversal, static stress;
  • dual power to provide safe work (+5V USB socket, +12V/+24V OBD2 socket);
  • support of power 24V to work with trucks and buses;
  • set programming voltage 5 — 20V with the step 0.1 V onto pins 8, 9, 11, 12, 13 of the OBD2 socket, maximum current is equal to 20 mA;
  • support of Single wire CAN bus (SW CAN);
  • support of the second CAN BUS on pins 3 — 11 of the OBD2 socket (can be also crossed to pins 1 — 8, 12 — 13 via soldering bridges on the OBD2 plate inside the adapter);
  • indication of the operating mode via 3 LEDs;
  • OBD2 case;
  • Mini USB socket to connect to the computer.

Support of the following protocols:

  • ISO 11898 (raw CAN) up to 1Mb/s;
  • ISO 15765-4 (CAN);
  • ISO 14230-4 (Keyword Protocol 2000);
  • ISO 9141-2;
  • GM UART;
  • SW CAN.

The adapter pinout

  • 1 — SW CAN;
  • 3 — CAN Hi (second CAN BUS);
  • 4, 5 — Ground;
  • 6 — CAN Hi (main CAN BUS);
  • 7 — KLine (GM UART, ISO 9141-2, ISO 14230-4);
  •  8 — can be used for setting voltage 5 — 20V;
  • 9 — can be used for setting voltage 5 — 20V;
  • 11 — CAN Lo (second CAN BUS), can be used for setting voltage 5 — 20V;
  • 12 — can be used for setting voltage 5 — 20V;
  • 13 — can be used for setting voltage 5 — 20V;
  • 14 — CAN Lo (main CAN BUS);
  • 15 — LLine (can also be short to the ground);
  • 16 — +12V (in order to measure the voltage in the OBD socket and adapter power backup).

The adapter is a universal device able to work in various modes:

  • J2534 compatible device;
  • K-Line adapter;
  • CANHacker.

The adapter supports the protocol ISO22900 and works with Tech2Win. Initially the device works as a J2534 compatible device. You can change the device mode using the shortcuts located in Start- Programs - CHIPSOFT J2534 Mid:

  • Make J2534;
  • Make K-Line;
  • Make CANHacker.
USB cable Item no.: 11U1000

Gold-plated contacts, molded connectors. Length: 1 m, colour: black.

5 $
OBD Male to OBD Female connector Item no.: 13P4000

OBD Male to OBD Female connector. Length: 31 cm.

6 $
OBD 16pin Male to 2x 16pin Female splitter Item no.: 11R1000

It allows to connect two diagnostic devices to one diagnostic plug. Pinout: 16 contacts pit-to-pin. Length: 30 cm.

6 $
CF Moto 3pin-to-OBD2 adapter Item no.: 13P3333

CF Moto 3pin-to-OBD2 adapter is designed to connect OpenPort 2.0 or any device with built-in OBD2 Male to the diagnostic connector of CF Moto vehicles. It allows to perform reflash of the vehicles with Bosch MSE3.0 and Delphi MT05.2 ECUs with no need to get ECU on the bench.

54 $
6pin-to-OBD2 adapter Item no.: 11B2/02

6pin-to-OBD2 adapter is designed to connect a J2534 adapter or any device with built-in OBD2 Male to 6-pin diagnostic connector of different extreme vehicles like ATVs, UTVs and motorcycles made in China.

54 $
BRP 6pin-to-OBD2 adapter Item no.: 13P2001

BRP 6pin-to-OBD2 adapter is designed to connect OpenPort 2.0 or any device with built-in OBD2 Male to the diagnostic connector of BRP vehicles. It can be used for most 4-TEC/E-TEC models of BRP vehicles 2004-2016.

54 $
GM12 OBDII adapter Item no.: 21S5/14
6 $
