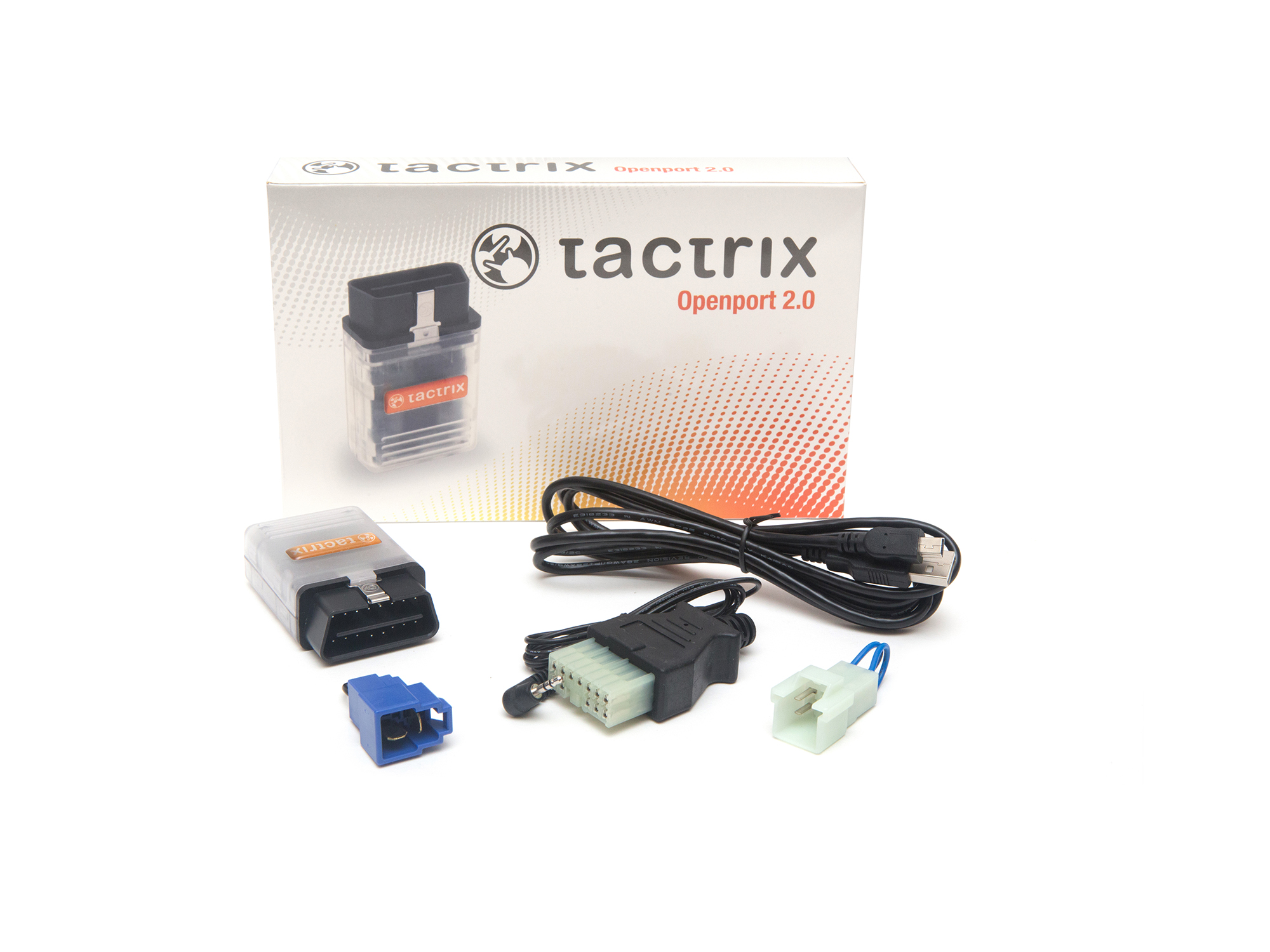

Openport 2.0
Item no.: 13O1000
- Adapter
- USB cable

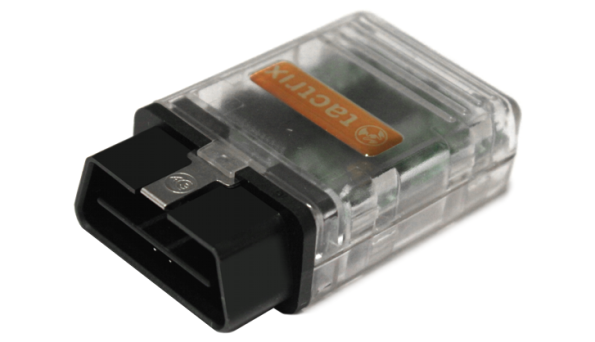

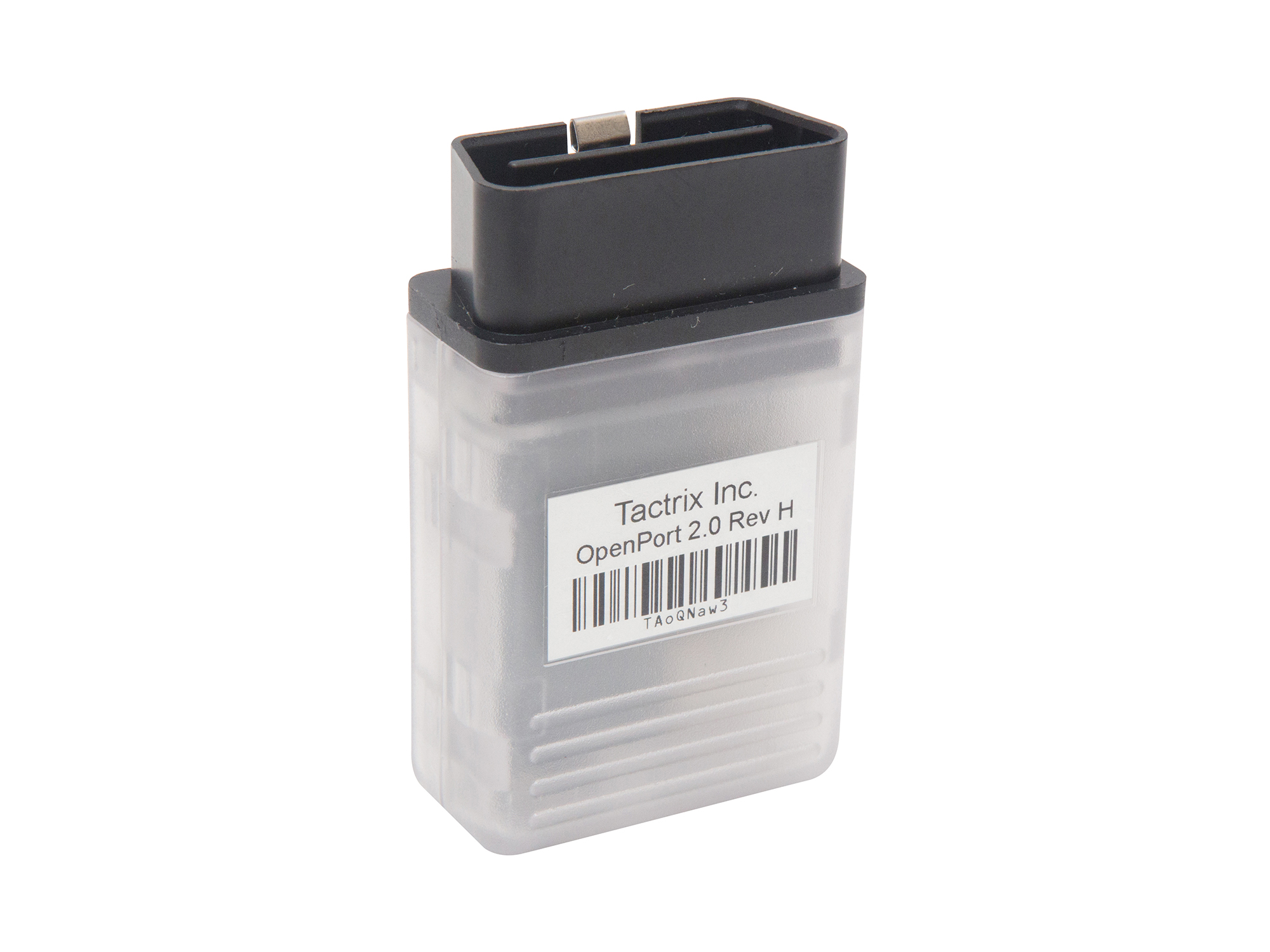

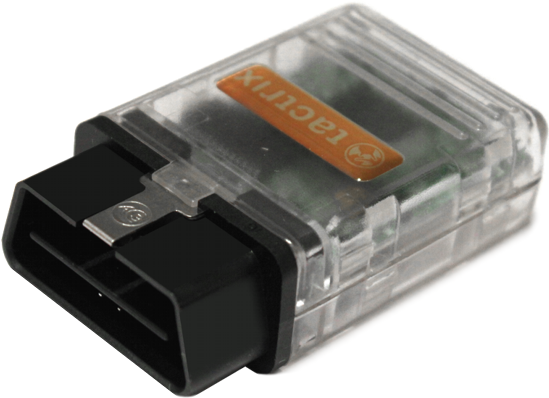

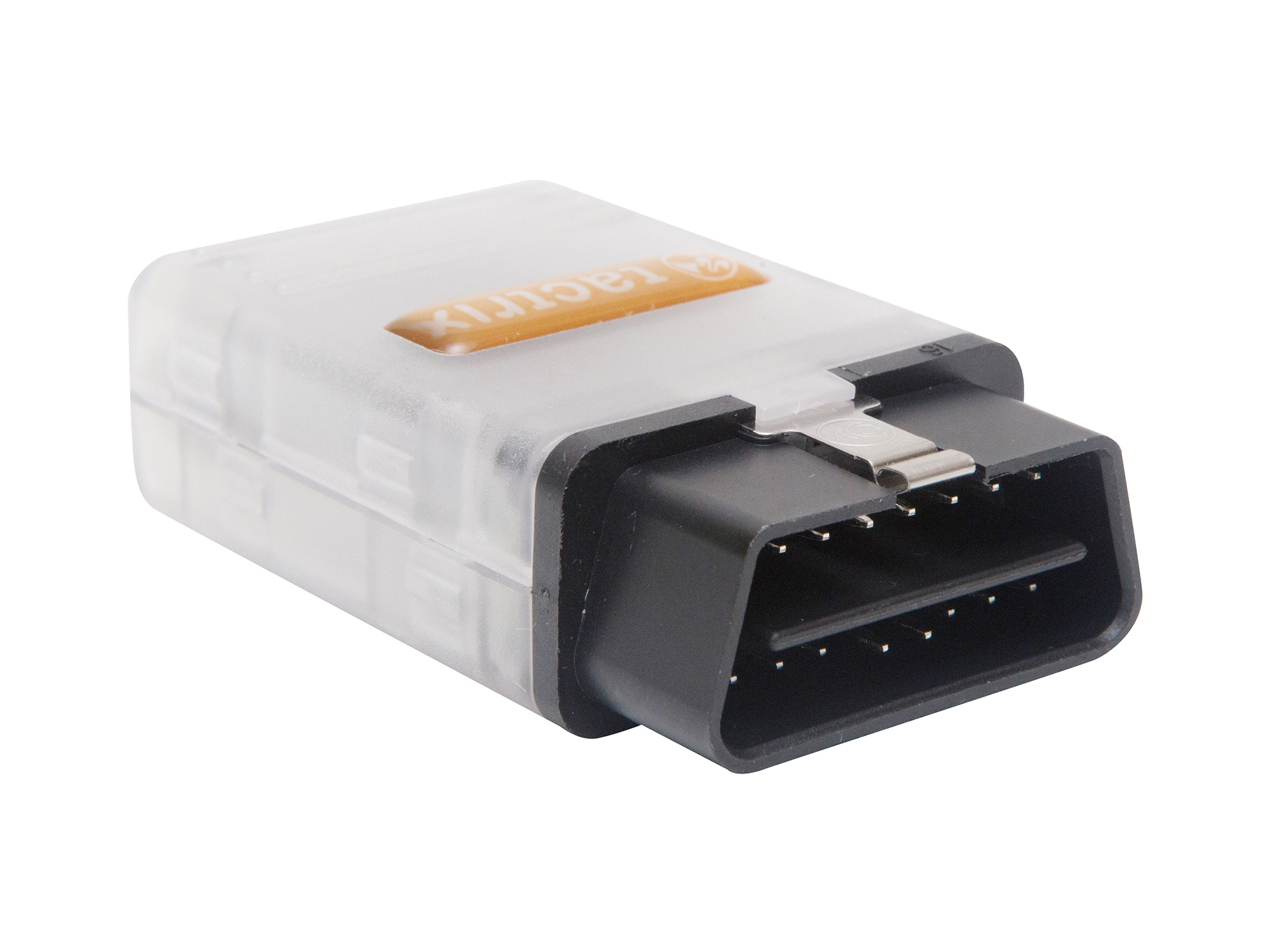

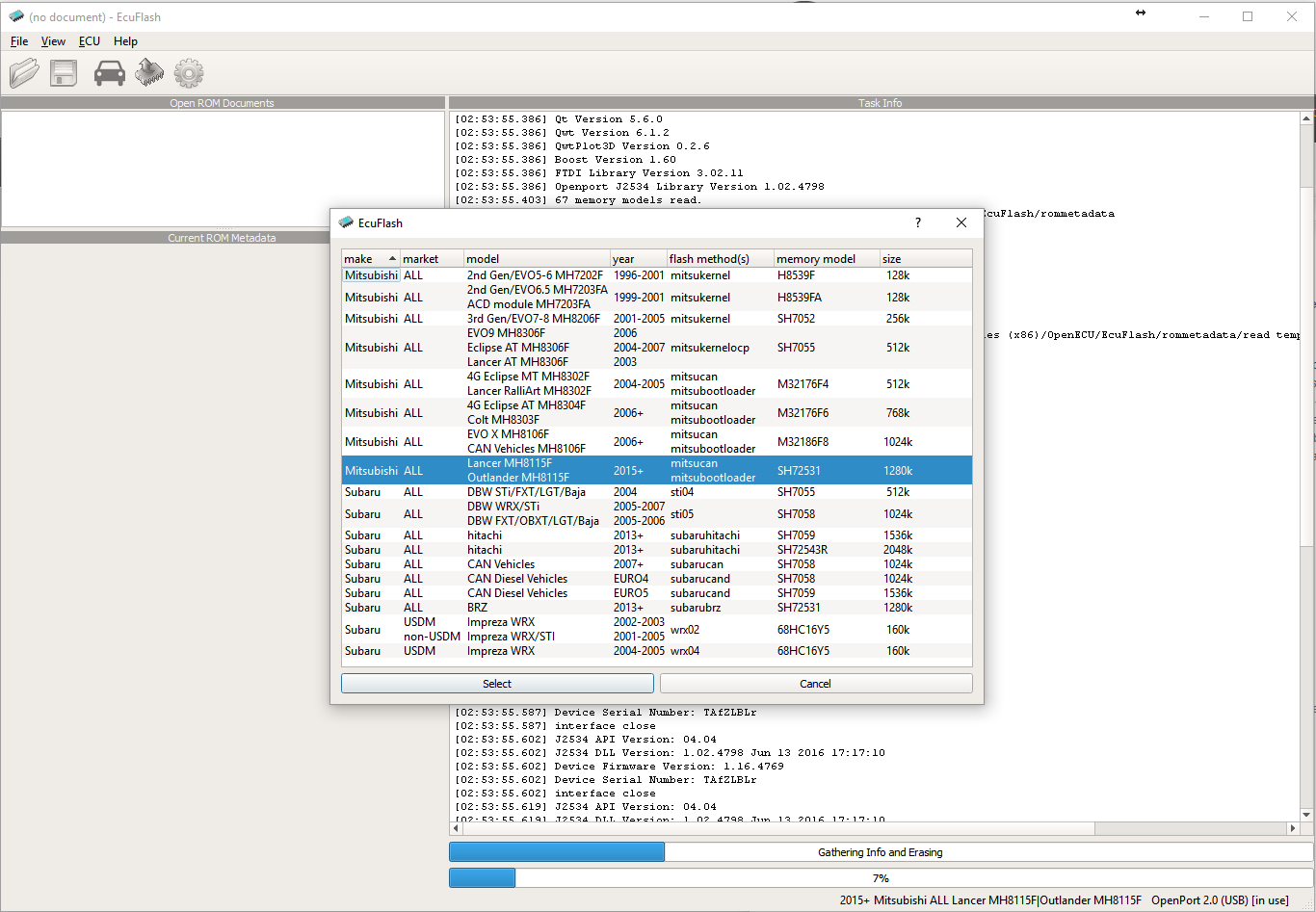

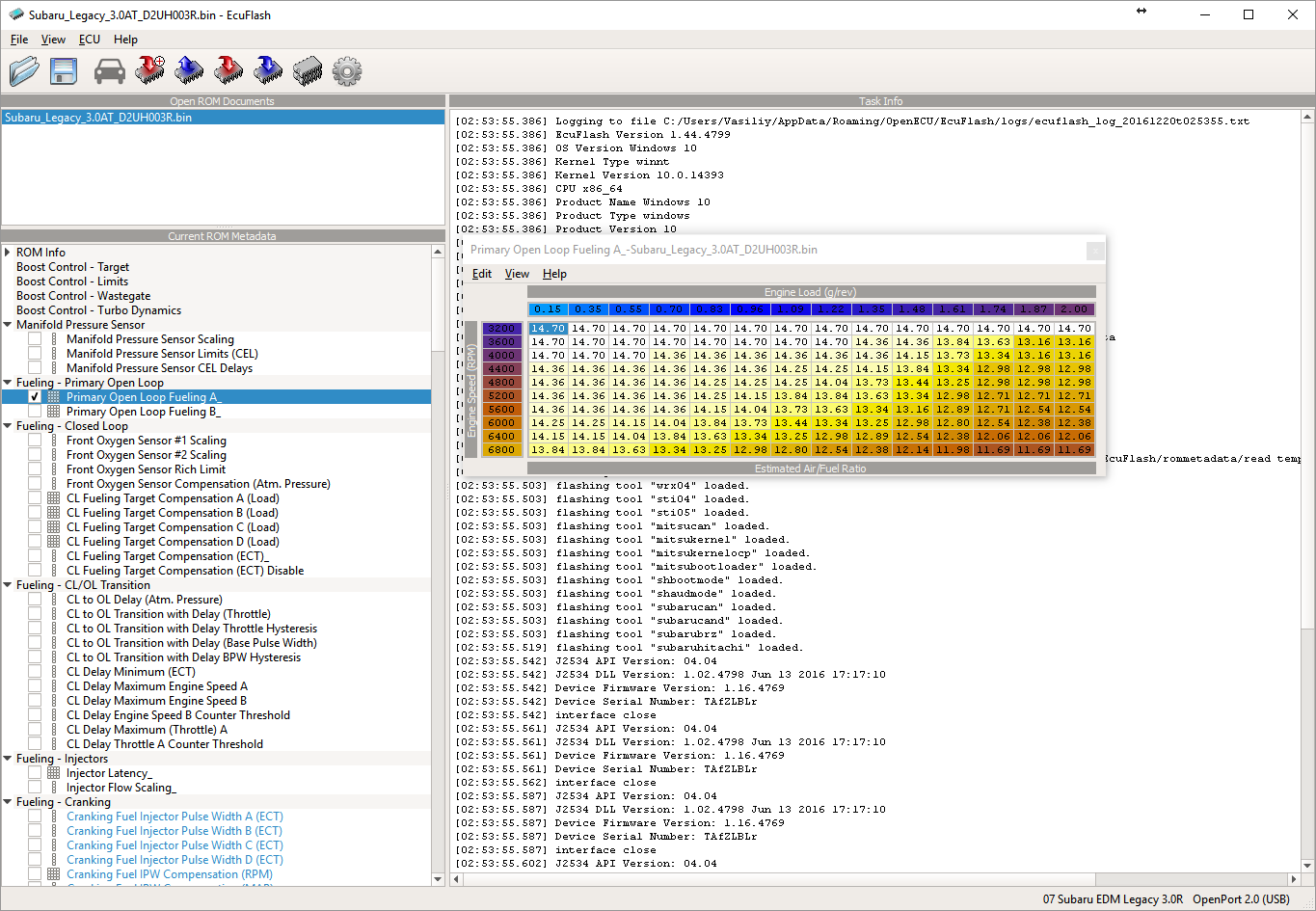

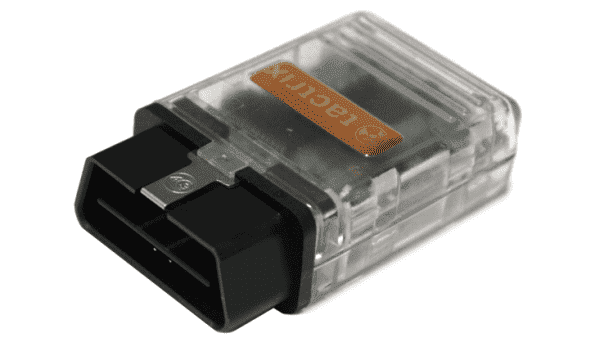

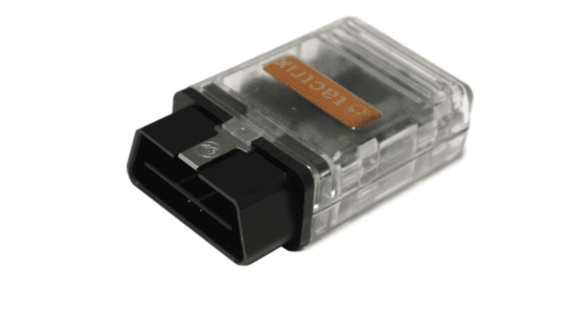

The OpenPort 2.0 is tuning tool hardware that is capable of communicating with a most OBDII compliant vehicles using a standard J2534 interface. Combined with EcuFlash software, the OpenPort 2.0 is capable of reflashing a large number of newer Subaru and Mitsubishi vehicles. A USB cable is included with each OpenPort, which is all the hardware you will need unless you have one of the few vehicles that require a separate reflash adapter. For Subaru you will only need a reflash adapter for the 2001 through 2005 WRX, but not STi, unless you are working on an early non USDM STi in which case you may need one of our WRX adapters. No other Subaru vehicles require reflash adapters including Forester, Baja, Legacy, or naturally aspirated Impreza models. For Mitsubishi, you will need the adapter for most pre CAN vehicles which include the 5-9 Evo. Choose the adapter you need from the ’Reflash Adapters’ list below.
Technical Details
- 72Mhz 32-bit processor;
- USB 2.0 full speed device (USB-A/Mini cable included);
- Field upgradeable software;
- Supports these major OBD protocols:
- CAN 2.0 (CAN/ISO15765);
- K-line (ISO9141/ISO14230(KWP2000)/dual K line);
- J2534 PassThru support with Windows DLL;
- Standalone datalogs to microSD / microSDHC card without a laptop;
- Able to apply GND or 5V-25V to OBD pins 1,3,9,11,12,13 or AUX 2.5mm stereo connector;
- Able to log from Innovate Motorsports 2.5mm stereo MTS data bus;
- RGB status LEDs.
It has been successfully tested with the following software: Chiploader, MMC Flasher, Multiflasher, PCM Flash, Toyota Techstream and many others.
NB! We do NOT sell clone tools. This Openport is the original product of Tactrix Inc. Every customer is guaranteed to get all the updates including beta and technical support.
OBD Male to OBD Female connector. Length: 31 cm.
It allows to connect two diagnostic devices to one diagnostic plug. Pinout: 16 contacts pit-to-pin. Length: 30 cm.
CF Moto 3pin-to-OBD2 adapter is designed to connect OpenPort 2.0 or any device with built-in OBD2 Male to the diagnostic connector of CF Moto vehicles. It allows to perform reflash of the vehicles with Bosch MSE3.0 and Delphi MT05.2 ECUs with no need to get ECU on the bench.
6pin-to-OBD2 adapter is designed to connect a J2534 adapter or any device with built-in OBD2 Male to 6-pin diagnostic connector of different extreme vehicles like ATVs, UTVs and motorcycles made in China.
BRP 6pin-to-OBD2 adapter is designed to connect OpenPort 2.0 or any device with built-in OBD2 Male to the diagnostic connector of BRP vehicles. It can be used for most 4-TEC/E-TEC models of BRP vehicles 2004-2016.
