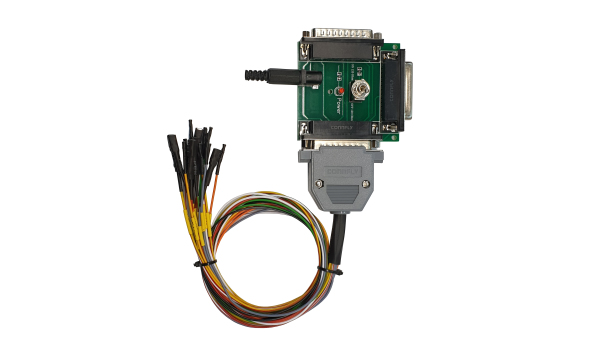

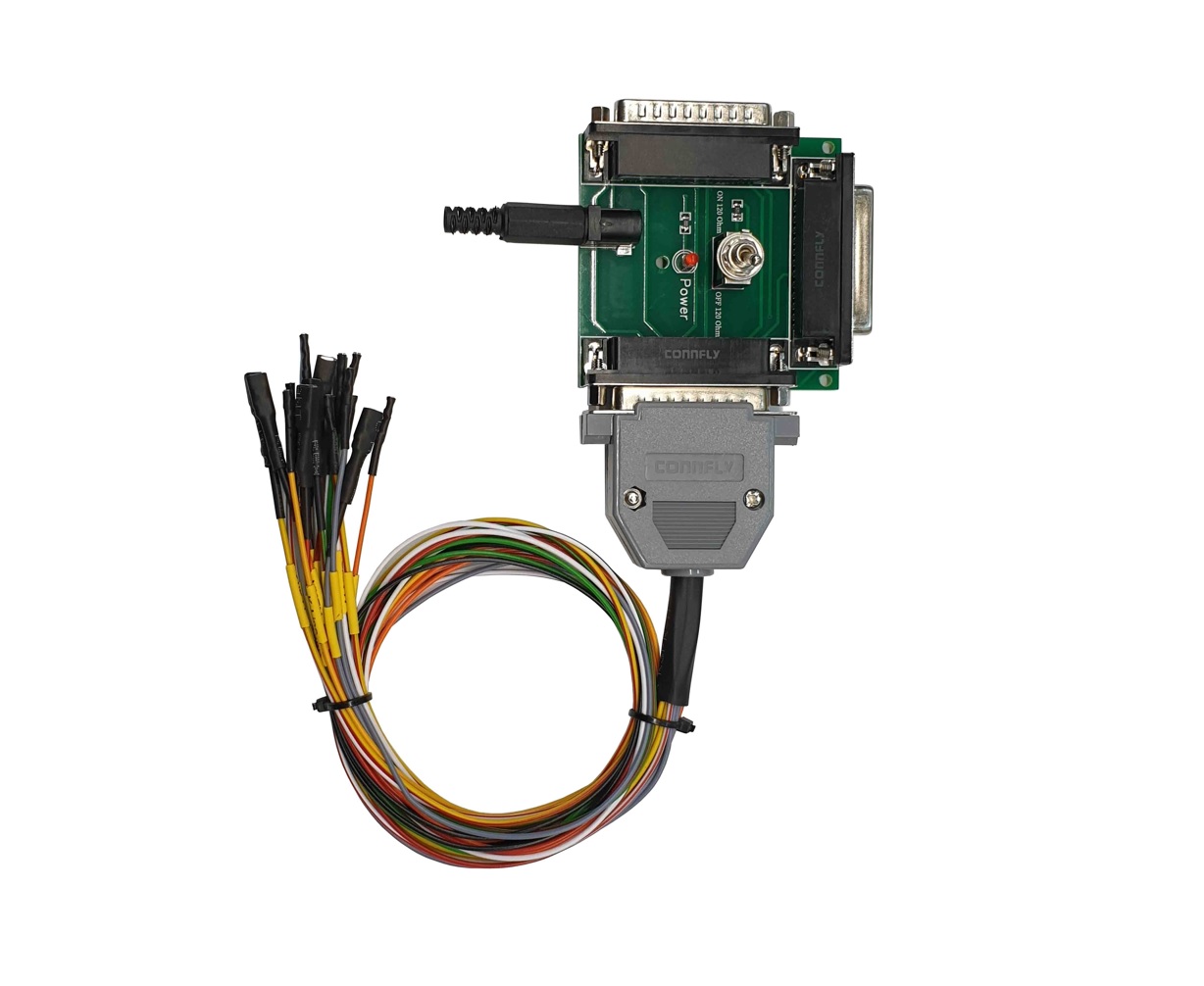

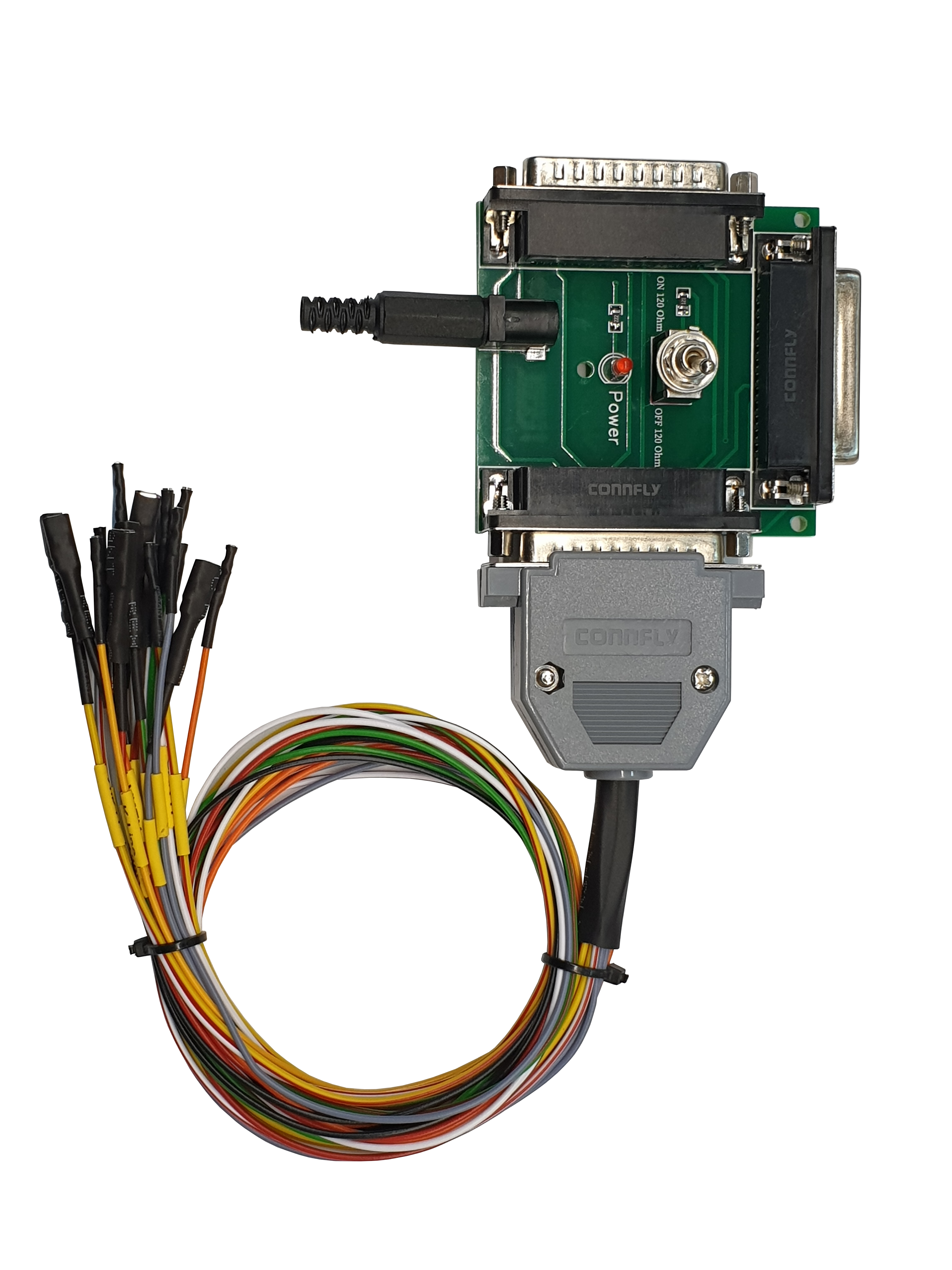

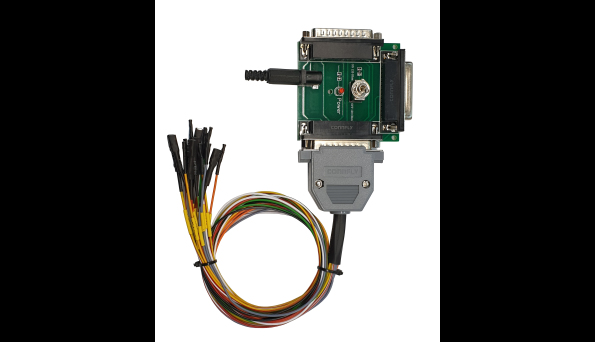

Universal cable for connecting and programming the ECU on the bench using Combiloader and Scanmatic SM2/SM2PRO adapter. It is also intended for use with integrated modules such as Bosch MEDC17 BSM, Bosch EDC16 BSM and Bosch ME9 BSM module kit and Module kit: SIMOS12/18 VAG (J2534).

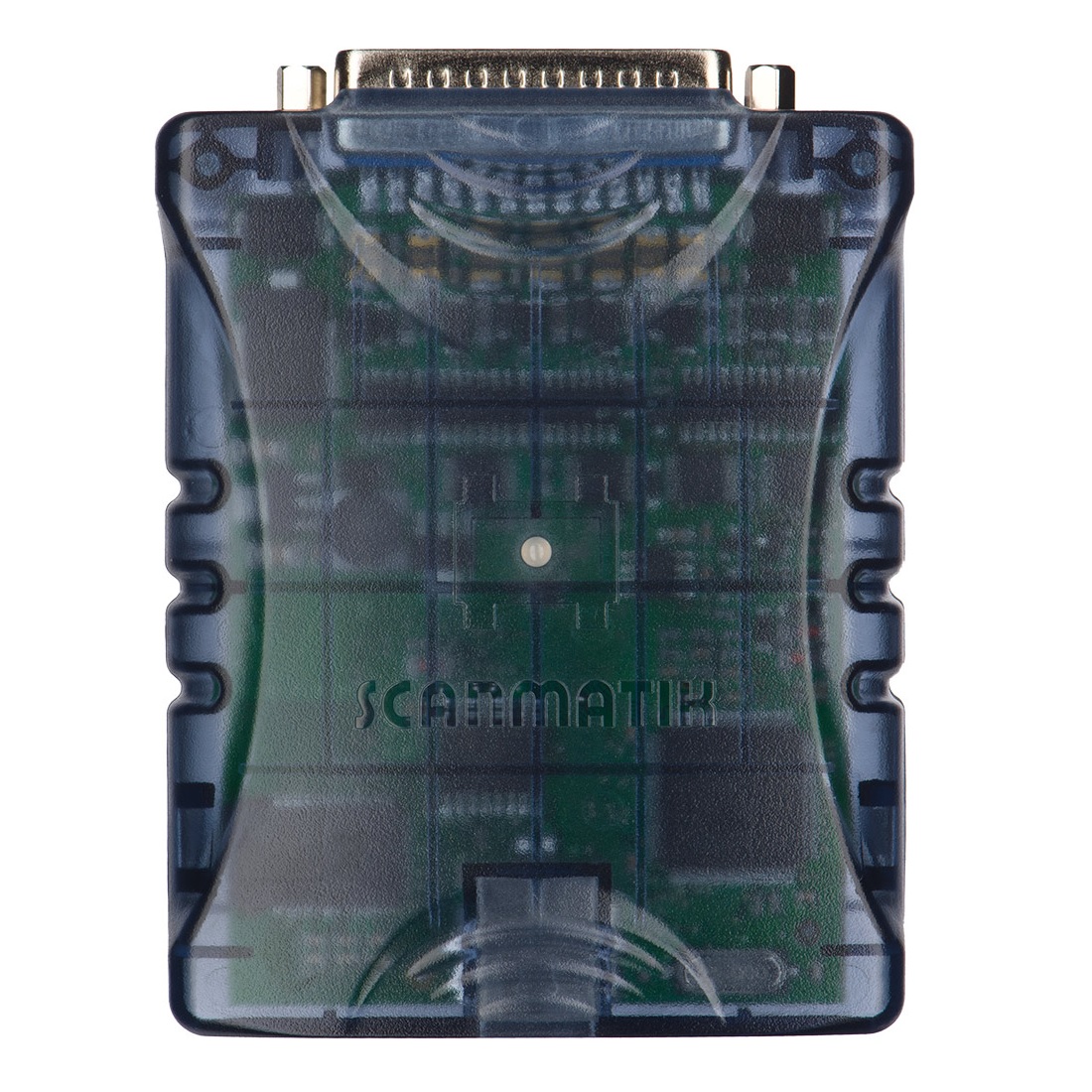

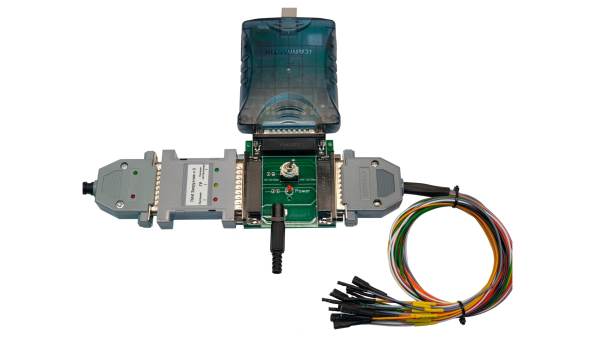

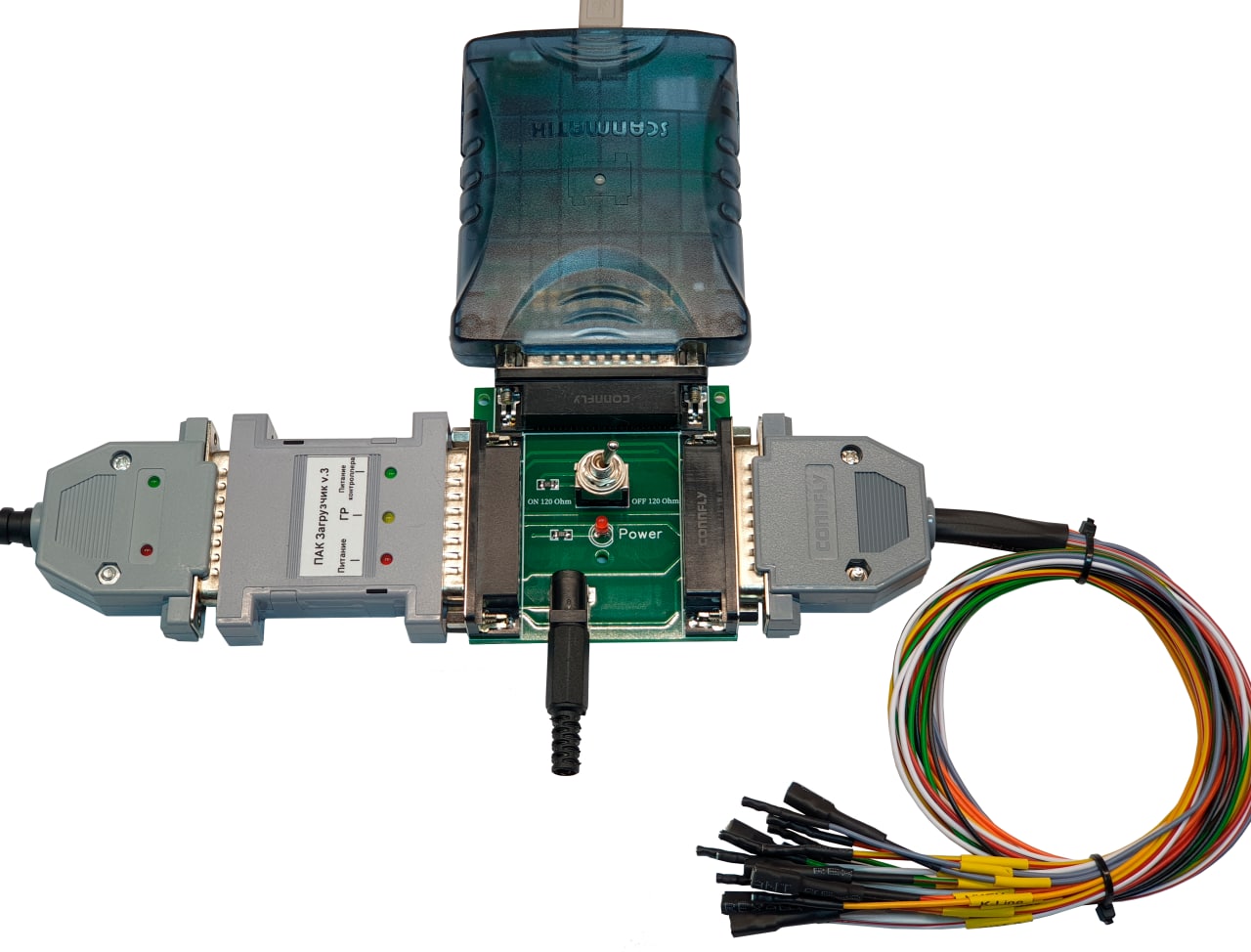

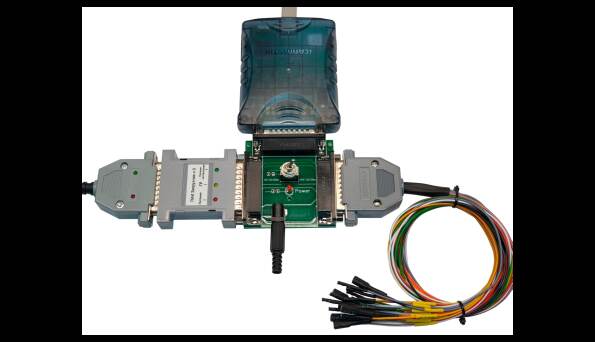

Connects directly to the SM2/SM2PRO adapter. The following outputs of GPT signals must be specified in the Combiloader settings.
OBDII Pin SM2/SM2Pro Pin DB25 SM2/SM2Pro
1 23 GPT1
2 4 GPT2
The universal cable has the ability to connect a 120 Ohm terminating resistor on the CAN-bus.
